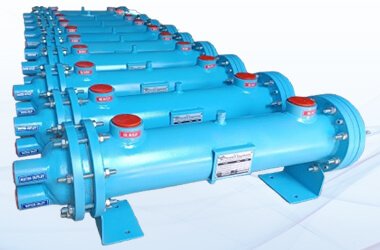

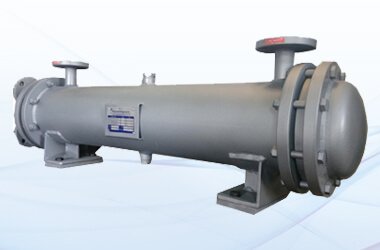

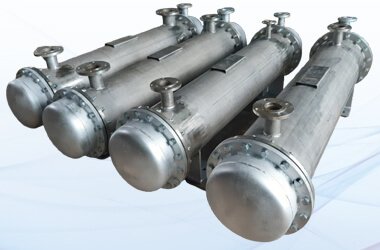

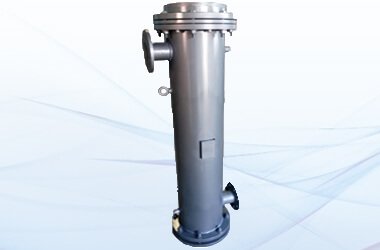

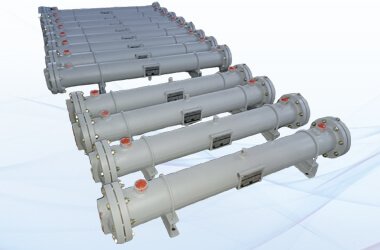

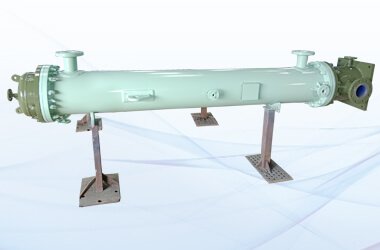

  • Our Shell and Tube condenser models are designed for Chiller Units and Refrigeration systems.
  • We manufacture Water cooled condensers with capacity ranging from 1TR to 150 TR
  • Finned copper tubes are used to increase heat transfer coefficient.
  • We manufacture Air cooled type condensers as per customer requirements.
  • Shell and Tube Heat Exchangers are widely used due to their Rigid construction and Long Life.
  • We manufacture Shell and Tube for Hydraulic Oil Cooling, Lubrication Oil Cooling, Gearbox Oil Cooling, Transformer Oil Cooling, Process water cooling etc.
  • Simplex and Duplex Oil coolers for Lubrication.
  • Our designs are as per ASME Sec VIII and TEMA Standards.
  • Our Thermal and Mechanical Design Engineers constantly thrive to achieve optimum design All the designs are strictly as per design Standards.
  • Boiler Quality material such as SA 516 Gr.60/70 is used as per customer request.

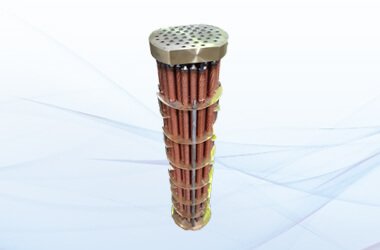

  • Hydro and Eddy current Tested Tubes are used for Shell and Tube Heat Exchanger manufacturing.
  • Tubes are usually of Copper, Admiralty Brass, SS 316, Cupro-Nickel etc as per service requirements.

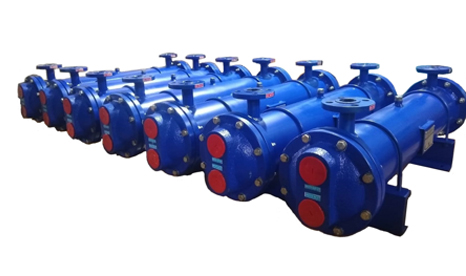

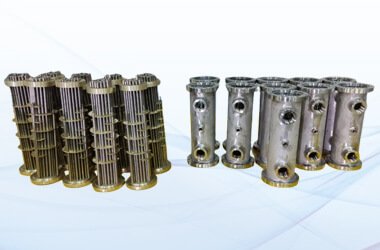

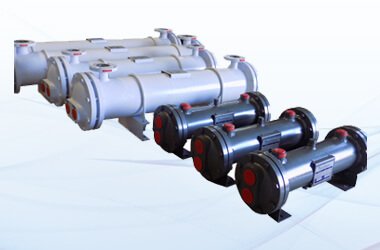

shell-tube-heat-exchangers
Types :
  • Floating Tube-sheet Design
  • Fixed Tube-sheet Design

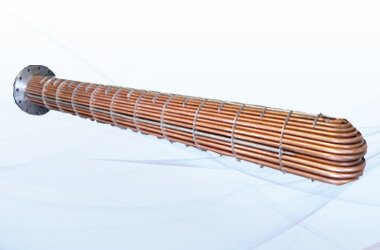

  • U-Tube Bundle Construction
Applications :
  • Hydraulic Oil Cooling
  • Lube Oil Cooling
  • Pulp and Paper Industries
  • Food Processing and Chemical Industries
  • Pharmaceutical companies
  • Quench Oil Cooling

Material of Construction



General Application

Special  Application

Shell

M.S (ERW Pipe)

S.S  (Seamless Pipe)

Tubes

Copper

CuNi 70:30 /CuNi 90:10

Tube-sheets

M.S

Ab-2, SS , Naval Brass

End Covers

Cast Iron

LG-4, Gun Metal , SS

Baffles & Tie Rods

M.S

 S.S , Brass

Model
Size
Capacity kcal/hr
Capacity kW
Oil Flow LPM
FOC 2 4 " X 18 " 1500 1.75 10-15
FOC 3 4 " X 20 " 2400 2.8 15-30
FOC 5 4 " X 24 " 3000 3.5 20-35
FOC 7.5 4 " X 30 " 5000 6 30-55
FOC 10 6 " X 18 " 6000 7 35-75
FOC 15 6 " X 20 " 10500 12 60-100
FOC 20 6 " X 24 " 13500 16 80-150
FOC 25 6 " X 30 " 18000 21 100-190
FOC 30 8 " X 24 " 24000 28 140-270
FOC 40 8 " X 24 " 32000 37 180-370
FOC 50 8 " X 30 " 34000 40 220-415
FOC 60 8 " X 36 " 38000 44 240-465
FOC 70 8 " X 42 " 45000 52 280-530
FOC 80 8 " X 48 " 60000 70 320-600
FOC 100 10 " X 54 " 75000 87 350-680
