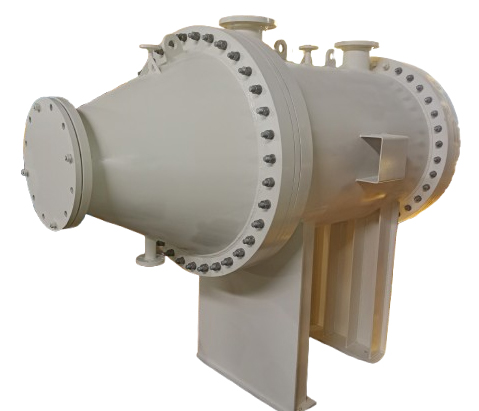

Inter and After Coolers for Compressors
We are Manufacturer, Supplier, Exporter of Inter and After Coolers for Compressors in Karnataka, India, Africa & Gulf Countries.

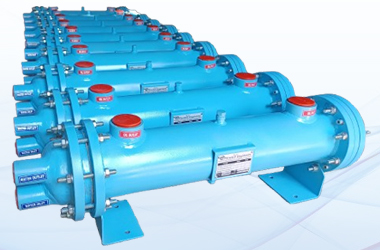

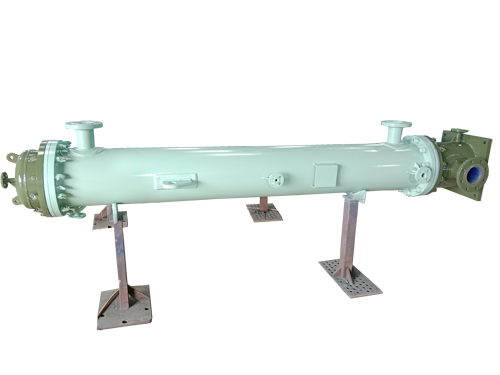

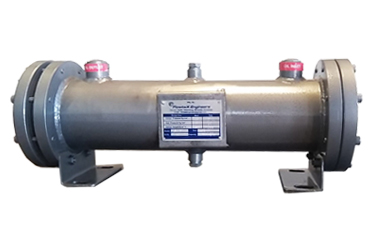

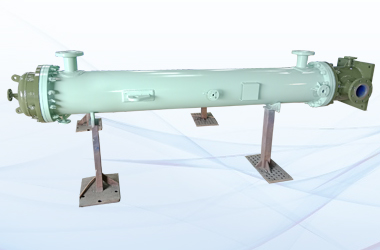

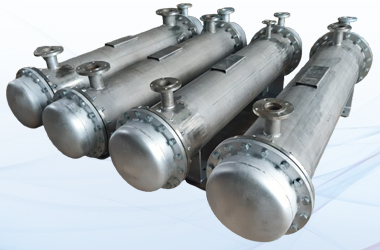

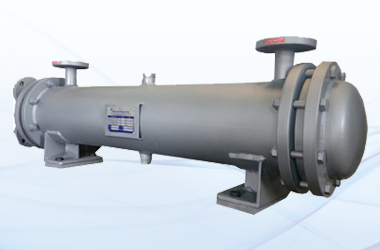

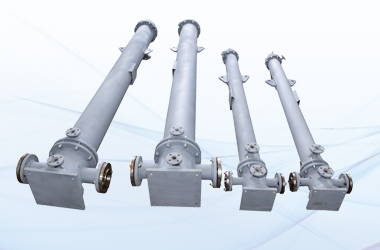

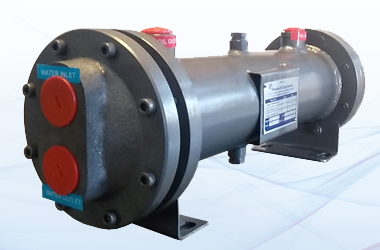

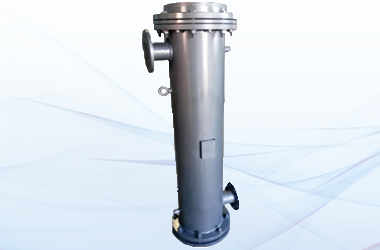

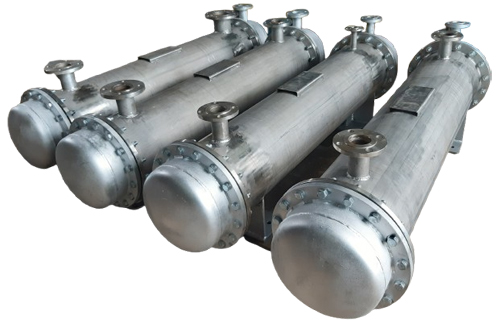

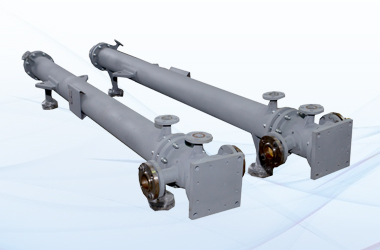

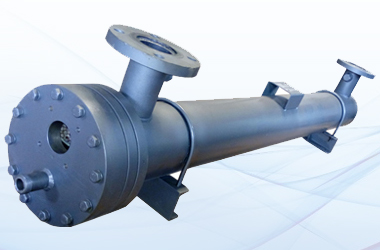

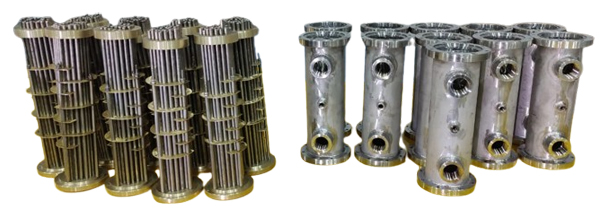

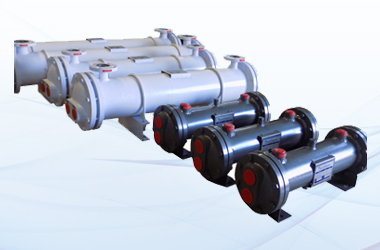

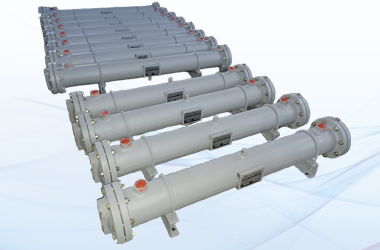

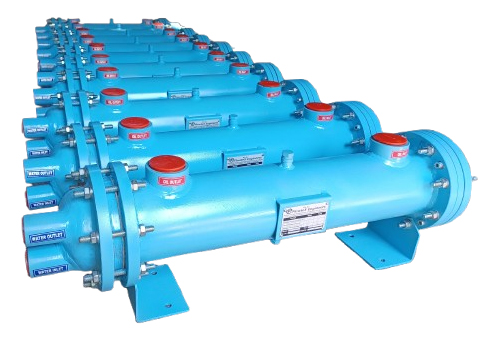

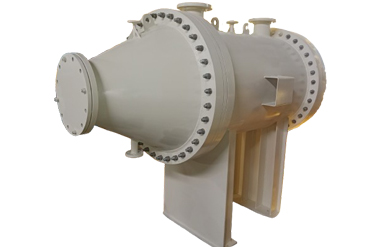

- Shell and Tube Heat Exchangers are widely used due to their Rigid construction and Long Life.
- We manufacture Shell and Tube for Hydraulic Oil Cooling, Lubrication Oil Cooling, Gearbox Oil Cooling, Transformer Oil Cooling, Process water cooling etc.
- Simplex and Duplex Oil coolers for Lubrication.
- Our designs are as per ASME Sec VIII and TEMA Standards.
- Our Thermal and Mechanical Design Engineers constantly thrive to achieve optimum design
All the designs are strictly as per design Standards.
- Boiler Quality material such as SA 516 Gr.60/70 is used as per customer request.

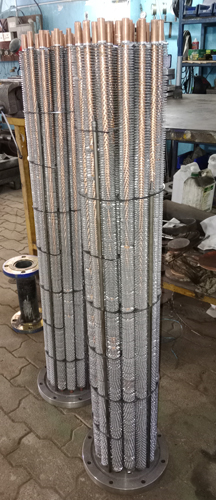

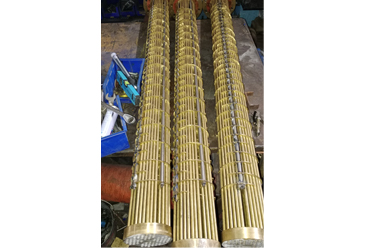

- Hydro and Eddy current Tested Tubes are used for Shell and Tube Heat Exchanger manufacturing.
- Tubes are usually of Copper, Admiralty Brass, SS 316, Cupro-Nickel etc as per service requirements.
Types :
- Floating Tube-sheet Design
- Fixed Tube-sheet Design

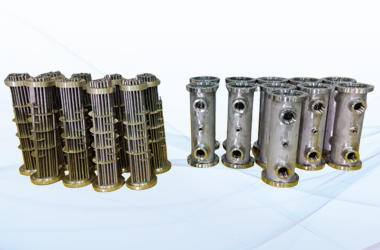

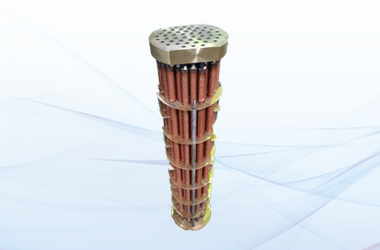

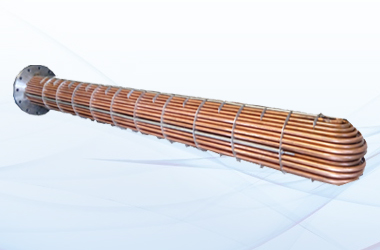

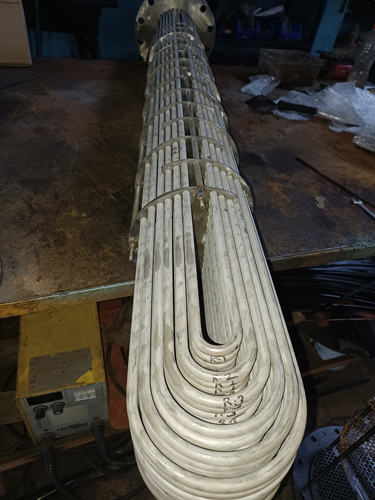

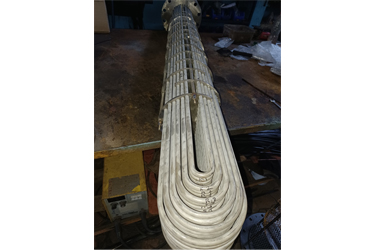

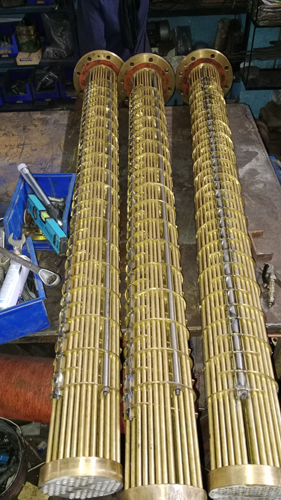

- U-Tube Bundle Construction
Applications :
- Hydraulic Oil Cooling
- Lube Oil Cooling
- Pulp and Paper Industries
- Food Processing and Chemical Industries
- Pharmaceutical companies
- Quench Oil Cooling
Material of Construction |
|
General Application |
Special Application |
Shell |
M.S (ERW Pipe) |
S.S (Seamless Pipe) |
Tubes |
Copper |
CuNi 70:30 /CuNi 90:10 |
Tube-sheets |
M.S |
Ab-2, SS , Naval Brass |
End Covers |
Cast Iron |
LG-4, Gun Metal , SS |
Baffles & Tie Rods |
M.S |
S.S , Brass |
Model |
Size |
Capacity kcal/hr |
Capacity kW |
Oil Flow LPM |
| FOC 2 |
4 " X 18 " |
1500 |
1.75 |
10-15 |
| FOC 3 |
4 " X 20 " |
2400 |
2.8 |
15-30 |
| FOC 5 |
4 " X 24 " |
3000 |
3.5 |
20-35 |
| FOC 7.5 |
4 " X 30 " |
5000 |
6 |
30-55 |
| FOC 10 |
6 " X 18 " |
6000 |
7 |
35-75 |
| FOC 15 |
6 " X 20 " |
10500 |
12 |
60-100 |
| FOC 20 |
6 " X 24 " |
13500 |
16 |
80-150 |
| FOC 25 |
6 " X 30 " |
18000 |
21 |
100-190 |
| FOC 30 |
8 " X 24 " |
24000 |
28 |
140-270 |
| FOC 40 |
8 " X 24 " |
32000 |
37 |
180-370 |
| FOC 50 |
8 " X 30 " |
34000 |
40 |
220-415 |
| FOC 60 |
8 " X 36 " |
38000 |
44 |
240-465 |
| FOC 70 |
8 " X 42 " |
45000 |
52 |
280-530 |
| FOC 80 |
8 " X 48 " |
60000 |
70 |
320-600 |
| FOC 100 |
10 " X 54 " |
75000 |
87 |
350-680 |
